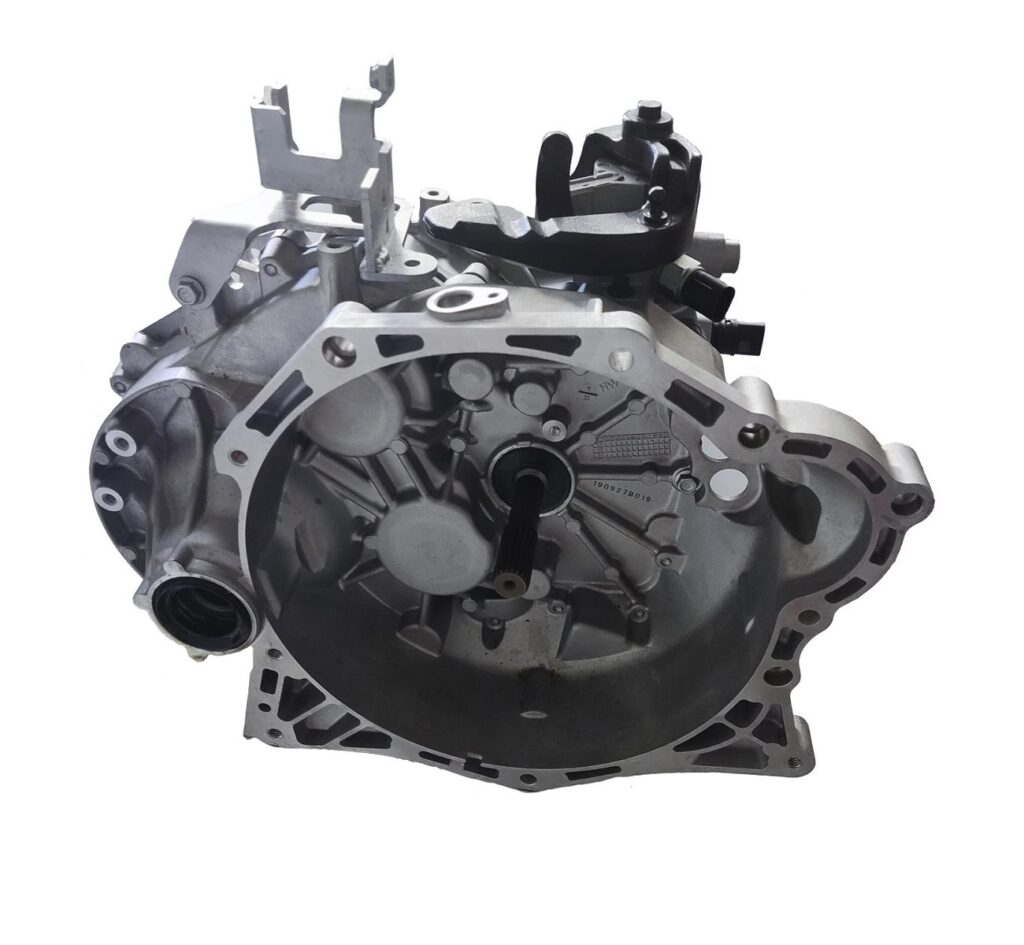

Transverse Transmission Series
| Max Input Torque | 250 N·m |
|---|---|
| Max Input Speed | 6000 rpm |
| Center Distance | IN–OUT: 71 mm OUT–DIF: 121 mm |
| Gears | 6 speeds (fully synchronized) |
| Gear Type | Ground teeth, Grade 6 |
| Housing | ADC12 |
| Gear Ratios |
1st 3.727, 2nd 2.048, 3rd 1.357, 4th 1.032, 5th 0.821, 6th 0.690, Reverse 3.818, Final Drive 3.611 / 4.267 |
| Synchronizer | 1st–2nd triple-cone (steel ring); 3rd–4th double-cone; 5th–6th & reverse single-cone; friction faces lined with carbon material. |
| Weight | 40 kg |
